BMW X3 (F25) Service & Repair Manual: Rear axle repair instructions

• Danger of poisoning if oil is ingested/absorbed through the skin
• Information on replacing shock absorbers
• Lifting the vehicle using a vehicle hoist
• Measuring vehicle ride height
• Raising vehicle with trolley jack
• Risk of injury if oil comes into contact with eyes and skin
• Safety instructions for handling oil

Danger of poisoning if oil is ingested/absorbed through the skin

Danger of poisoning! Ingesting oil or absorbing through the skin may cause poisoning!

Possible symptoms are:

• Headaches
• Dizziness
• Stomach aches
• Vomiting
• Diarrhoea
• Cramps/fits
• Unconsciousness

Protective measures/rules of conduct:

• Pour oil only into appropriately marked containers
• Do not pour oil into drinking vessels (drinks bottles, glasses, cups or mugs)
• Observe country-specific safety regulations

First aid measures:

• Do not induce vomiting.

  If the person affected is still conscious, he/she must rinse out their mouth with water, drink plenty of water and consult a doctor immediately.

  If the person affected is unconscious, do not administer anything by mouth, place the person in the recovery position and seek immediate medical attention.

Information on replacing shock absorbers

Situation: When a shock absorber is faulty on one side (leaking, noises, limit values exceeded on the shock tester), often both shock absorbers on the axle in question are replaced.

Effect: This is not necessary for technical reasons and causes the manufacturer not to recognize the unnecessarily removed shock absorbers as defective parts. Unnecessarily high costs for the customer can be avoided by replacing the shock absorber on one side only.

Procedure: If one shock absorber is damaged, it is only necessary to replace both shock absorbers when the car has driven in excess of 80 000 km.

Exception: On all M-GmbH models, when a limit value is exceeded on one side, it is still necessary always to replace both shock absorbers on the relevant axle.

INSTRUCTIONS (CHASSIS COMPONENTS MADE OF ALUMINIUM)

Due to the chemical and corrosion characteristics of aluminium, always comply with the following points when handling aluminium components:

• Do not bring into contact with battery acid!
• Do not clean with wire brushes made of brass or iron! Always use wire brushes with stainless steel bristles!
• Do not expose to flying sparks when grinding/separating! Cover components!
• Do not strike with steel welding splashes! Cover components!
• Do not expose to temperatures > 80 ºC, even for brief periods! Temperatures in paint facilities do not have the same impact

Lifting the vehicle using a vehicle hoist

WARNING: Danger to life! Read and follow operating instructions for vehicle hoist.

This also applies in the event of considerable removal of parts or conversions on the vehicle.

NOTE: The vehicle hoist must comply with the relevant statutory/country-specific accident prevention regulations and be serviced according to the regulations.

IMPORTANT: Risk of damage! Before driving onto a vehicle hoist, make sure there is sufficient ground clearance between the vehicle hoist and the vehicle.

The vehicle may only be raised with the vehicle hoist at the four jacking points.

Necessary preliminary work:

• If necessary, remove jacking points from equipment pack (with new vehicles) and insert from below into openings in front and rear sill areas.

IMPORTANT: All four jacking points (1) must be available! Never raise the vehicle without the jacking points (1)!

IMPORTANT: Risk of damage! Align support plates (2) of lifting platform arms to jacking points (1) in such a way that no adjoining components are touched and thereby damaged.

In hybrid cars there is a risk of damage to the high-voltage component behind the underbody panelling!

IMPORTANT: Risk of damage! Align the rubber block (2) with the jacking points (1) in such a way that no adjoining components are touched and thereby damaged.

Never raise the vehicle without rubber blocks (or rigid foam blocks)! There is a major risk of damage to the vehicle underbody!

In hybrid cars there is a risk of damage to the high-voltage component behind the underbody panelling!

Measuring vehicle ride height

Determine actual ride height (A) - to do so, attach tape measure to rim flange (2) at bottom middle and measure to wheel arch lower edge (1).

NOTES ON REPAIRING THREADS

IMPORTANT: Install Helicoil thread inserts so that they are flush with the original thread!

NOTE: Damaged threads may be repaired with Helicoil thread inserts. Observe the PROCEDURE described in the example.

OVERVIEW OF REAR AXLE FINAL DRIVE/OUTPUT SHAFTS

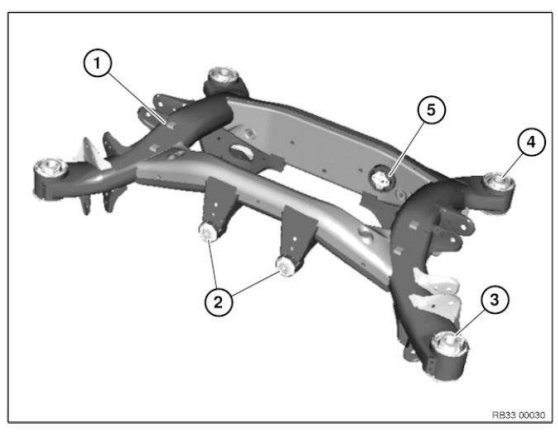

OVERVIEW OF REAR AXLE SUPPORT WITH RUBBER MOUNTS

OVERVIEW OF STEERING LINKS

Raising vehicle with trolley jack

Observe the following trolley-jack-related instructions:

1. Only trolley jacks sold or approved by BMW, with a rubber plate on their mounting, may be used! 2. Trolley jacks must be regularly serviced and always checked for functional reliability before they are used! 3. Check the rubber plate on the trolley jack prior to each use, replacing if necessary.

IMPORTANT: All-wheel drive vehicles may only be raised with the stiffening plate fitted on the front axle! Raising directly on the front axle support without stiffening plate is not permissible!

WARNING: The vehicle may be raised with a trolley jack only at the following mounting point!

1. Car jacking point
2. Side car jacking points
3. Rear axle final drive

NOTE: It is not permitted to raise the vehicle at the rear differential cover!

Risk of damage! Jacking point (1) must be present! Align the rubber plate on the trolley jack to the jacking point (1) in such a way that there is no contact to adjacent components and that they are therefore not damaged.

REAR AXLE LAYOUT

REAR AXLE: WHEEL ALIGNMENT CHECK MUST BE CARRIED OUT AFTER THE FOLLOWING WORK

A WHEEL ALIGNMENT CHECK must be carried out after the following work:

• Release of following screw connections:
  • Camber arm on rear axle support (2)
  • Toe arm on rear axle support (7)
• Replacement of following parts:
  • Rear axle support (1)
  • Toe arm (2)
  • Wheel carrier (5)
  • Wishbone (6)
  • Toe arm (7)

Risk of injury if oil comes into contact with eyes and skin

Danger of injury! Contact with eyes or skin may result in injury!

Possible symptoms are:

• Impaired sight
• Irritation of the eyes
• Reddening of the skin
• Rough and cracked skin

Protective measures/rules of conduct:

• Wear safety goggles
• Wear oil-resistant protective gloves
• Observe country-specific safety regulations

First aid measures:

• Eye contact: Rinse eyes immediately with plenty of water for at least 15 minutes; if available, use an eye-rinsing bottle. If irritation of the eyes persists, consult a doctor.
• Skin contact: Wash off with soap and water immediately. If irritation persists, consult a doctor.

NOTE: Do not use solvents/thinners.

Safety instructions for handling oil

WARNING: DANGER OF POISONING if oil is ingested/absorbed through the skin! RISK OF INJURY if oil comes into contact with eyes and skin!

Recycling: Observe country-specific waste disposal regulations.

Measures if oil is unintentionally released:

• Personal precautionary measures: Danger of slipping! Keep non-involved persons away from the work area. Wear personal protective clothing/equipment.
• Environmental protection measures: Prevent oil from draining into drain channels, sewerage systems, pits, cellars, water and the ground.
• Limiting spread: Use oil blocks to prevent the surface spread of oil.
• Cleaning procedure: Bind and dispose of escaped oil with nonflammable absorbents.

NOTE: Do not flush oil away with water or aqueous cleaning agents.
